The Neeralta Grain Bag

Loader

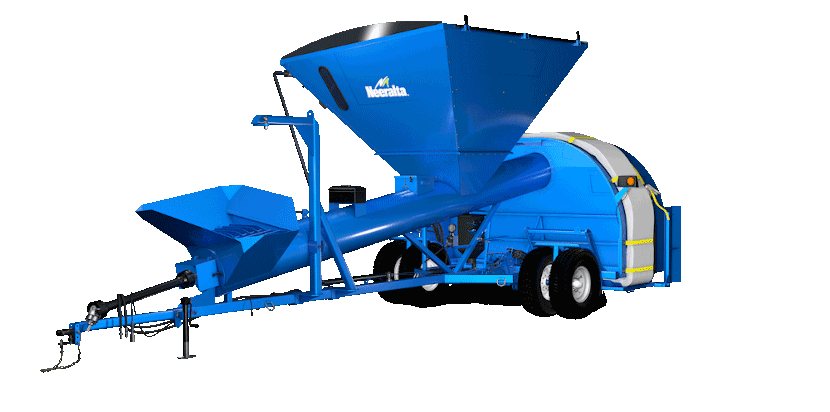

The Grain Bag Loader component of the Neeralta Grain Storage System provides innovations in reliability and ease-of-use that are unequaled by anything else in the field.

Overview

When you need a fast and flexible grain storage option, nothing matches the versatility of the Neeralta Grain Bagging system. The Grain Bag Loader component of this system provides innovations in reliability and ease-of-use that are unequaled by anything else in the field.

All of the features and benefits to the Neeralta Grain Bagging System are backed by an equally reliable warranty and service package. Neeralta engineering ensures rugged durability but for those moments of maintenance or service, you have even more additional assurance. All standard parts that are subject to periodic wear and replacement (bearings etc.) are readily available through your local service centre.

video


Play introductory video

Models

1224

1224

10’-12’ Variable

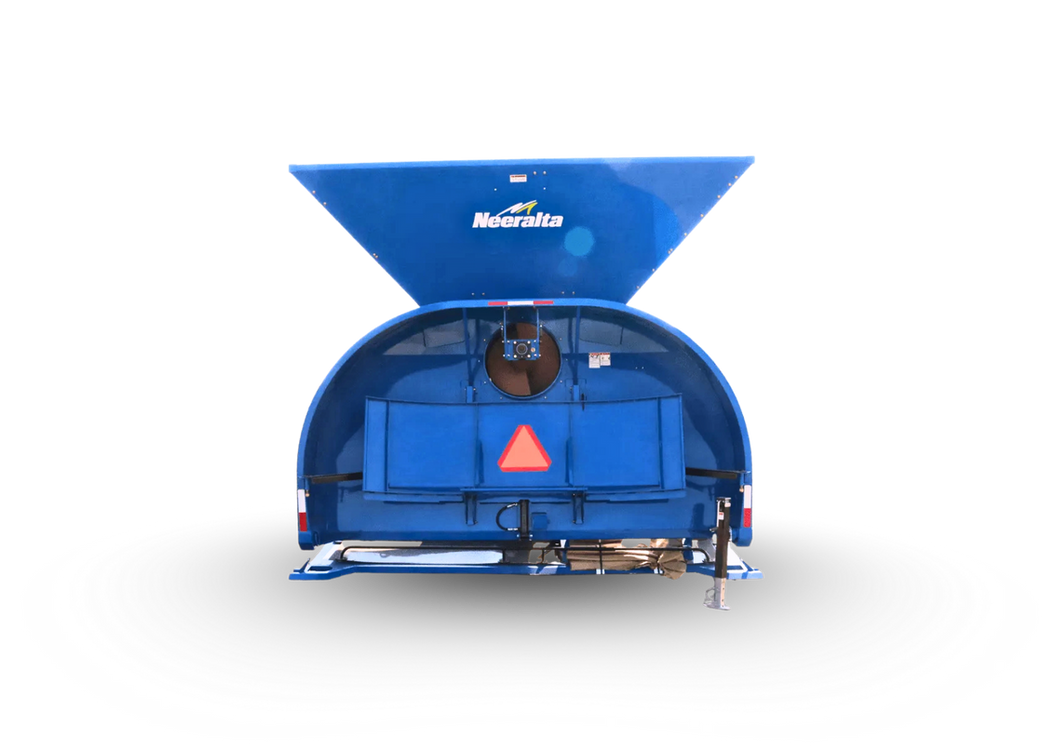

The Neeralta 1224 variable-width Grain Bag Loader is designed and built for high-capacity operations and grain carts. The high hopper capacity and 24” main tube allow the carts to empty quickly. With the ability to fill either 10’ or 12’ bags, the 1224 offers the ultimate in performance and flexibility for large operations.

1224 Specifications

  • Main tube diameter: 24”
  • Hopper size: 10’x12’
  • Capacity: 50,000 Bu/Hr
  • PTO: 1000 Small
  • HP Required: 125
  • Max Bag Size: 10’ or 12’x500’
  • Brakes: Hydraulic Disc
  • Transport to work mode: 60 seconds

Available with or without Swing Auger / Conveyor

1024

1024

10’ with 24” main tube

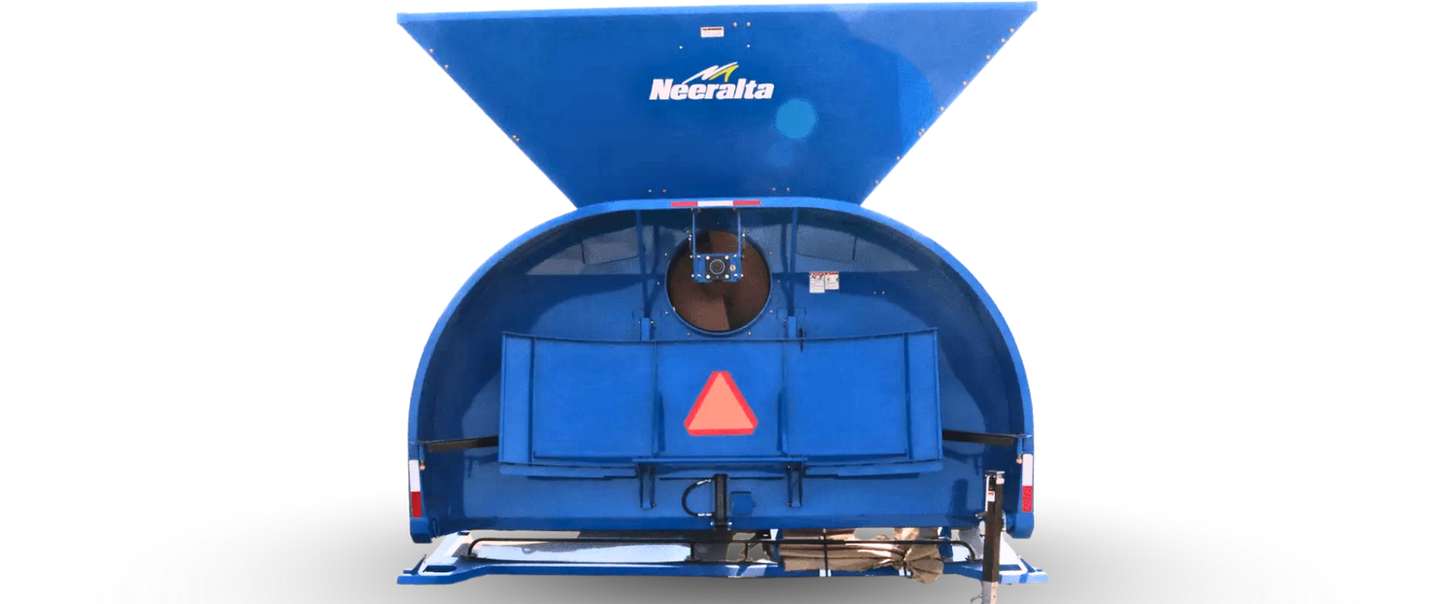

With the variable-width tunnel the only exception, the Neeralta 1024 Grain Bag Loader has all of the same high-capacity performance as the 1224. The 1024 and it’s large 24” main tube and high-capacity hopper, make it ideal for large-production environments using 10’ bags exclusively.

1024 Specifications

  • Main tube diameter: 24”
  • Hopper size: 10’x12’
  • Capacity: 50,000 Bu/Hr
  • PTO: 1000 Small
  • HP Required: 125
  • Max Bag Size: 10’x500’
  • Brakes: Hydraulic Disc
  • Transport to work mode: 60 seconds

Available with or without Swing Auger / Conveyor

1020

1020

10’ with 20” main tube

The Neeralta 1020 Grain Bag Loader is the bench-mark model that set all new standards for reliability and ease of use. With the standard 20’ main tube and generous hopper size, the 1020 is excellent for unloading trucks with the optional on-board swing auger, with the benefit of accommodating the use of grain carts as well.

1020 Specifications

  • Main tube diameter: 20”
  • Hopper size: 8’6”x10’
  • Capacity: 30,000 Bu/Hr
  • PTO: 540 Direct Drive
  • HP Required: 100
  • Max Bag Size: 12’x500’
  • Brakes: Hydraulic Disc
  • Transport to work mode: 60 seconds

Available with or without Swing Auger / Conveyor

Primary Options

Telescopic Swing Auger

An auger right where you need it at all times.The optional Swing Auger has 9’ of telescopic adjustment range and even 30” during operation. It is also hydraulically adjustable for left / right positioning, this allows for full 3-dimensional control, all from the convenience of an optional remote control. The on-board auger means faster yard-to-field and bag-to-bag setup times.

The movement range of the telescopic swing auger allows you to stay under the truck even if the truck is parked at varying distances from the grain bagger. This system also enables you to keep the auger under the truck while the grain bagger moves forward during filling.

Swing Auger Options

  • Remote control with on-board wifi
  • Foam-filled tires on radial drive wheels
  • Hopper roller instead of wheels

Swing Auger Specifications

  • Drive type: Hydraulic
  • Required flow: 22 GPM @ 2,200 P SI
  • Telescopic range: 9’
  • Transport to work mode: 60 seconds

Standard Equipment & Features

Hydraulic Bag Lift (1)

The bag lift cradle is designed as a solid component onto the bag tunnel. No electric or hand crank “tree swing” bag installations here. This smooth hydraulic bag lift brings stability and solid support to the bag installation process.

Hydraulic Bag Tray (2)

The hydraulic bag tray makes quick and easy work of getting the bag positioned under the tunnel and onto the Drop Pan. Simply extend the tray, drop the bag on, and the Tray pulls it up and into place.

Bag Install Arms (3)

Once the Bag Lift has the bag in position at the top of the tunnel, the Bag Install Arms guide the side weight of the folded bag outward. These innovative arms use simple leverage and lock into place to hold the bag to the outside of the tunnel, while completing the bag install at the bottom corners of the tunnel.

Hydraulic Lift Pan (4)

While the Bag Lift gets the top of the bag into position, the hydraulic Lift Pan allows space for the bottom of the bag. Raise or lower as needed for bag installation.
